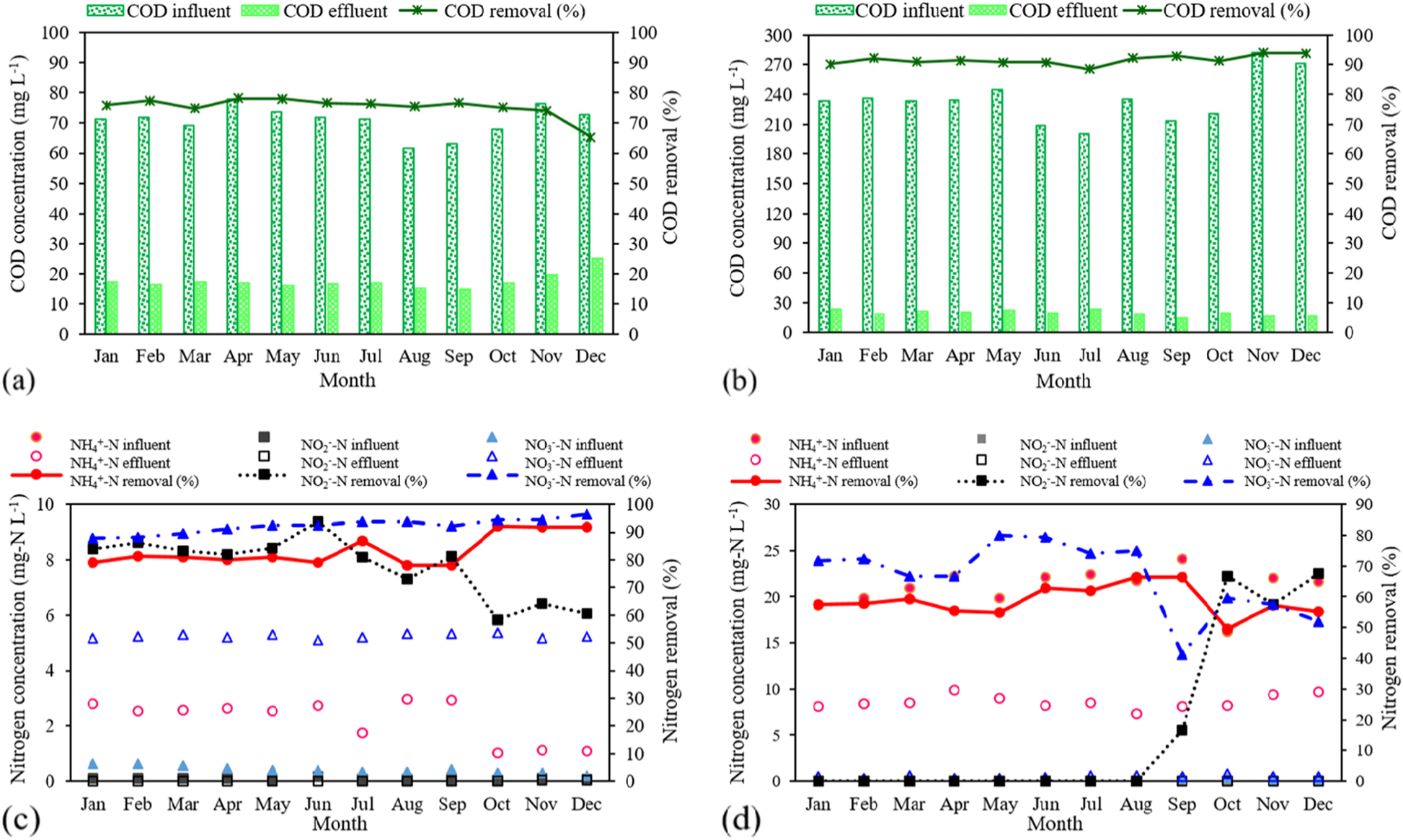

Fig. 2From: Effect of COD:N ratio on biological nitrogen removal using full-scale step-feed in municipal wastewater treatment plantsProcess performances on COD concentrations profile from a SF1 and from b SF2, and nitrogen (NH4+-N, NO2−- N, and NO3−-N) concentrations profile from c SF1 and from d SF2Back to article page
